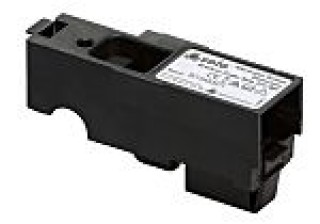

Generator
Removal & Replacement
• Insert the generator firmly into the recess, engaging
clips 1 and 2.
• Once the generator is inserted do not remove it until it
is indicated that a replacement is necessary.
• Remove the smoke cartridge from within the generator.
• Disengage clip 1 and lift. Repeat for clip 2 to remove
the used generator.
• When replacing a generator, any dust or debris from
the main unit can be removed with an air duster. Any
condensation can be removed by wiping with a lint-free
cloth.
Replacement
Removal
LI39114-1
1
